Reference architecture — Customer-support AI with per-customer isolation

This document sketches a secure, production-ready reference architecture for giving an LLM-based support assistant access to customer data while ensuring strict per-customer isolation and auditability.

---

High-level goals

• Least privilege: AI can only read/write data for the specific customer in the current session.
• Defense-in-depth: multiple layers (gateway, tokens, RLS, auditing) enforce constraints.
• Ephemeral context: session state isn’t reused across customers and is short-lived.
• Auditability & observability: every AI access is logged, traceable, and reviewable.

---

Core components

1. User / Agent UI — chat widget or support console used by agent/customer.
2. Session Manager — backend component that creates a per-interaction session and issues ephemeral scoped credentials (access token tied to customer_id + session id).
3. API Gateway / Mediator (Policy Enforcer) — single place the LLM uses to fetch data or call actions. Enforces filters (adds WHERE customer_id = X), rate limits, and templates.
4. MCP / Tool Adapter / LLM Tooling — the model-facing adapter that exposes actions the LLM may call (e.g., get_customer_profile, list_tickets, update_ticket). These endpoints accept the ephemeral token.
5. Data Stores — CRM, ticketing DB, analytics (e.g., Postgres, BigQuery, S3). Each store enforces RLS where possible.
6. Secrets & Token Service — short-lived signing keys, vault for service credentials.
7. Audit Log & SIEM — centralized event store for request/response logs and DLP scanning.
8. Human Review Layer (optional) — for high-risk operations, require agent approval.

---

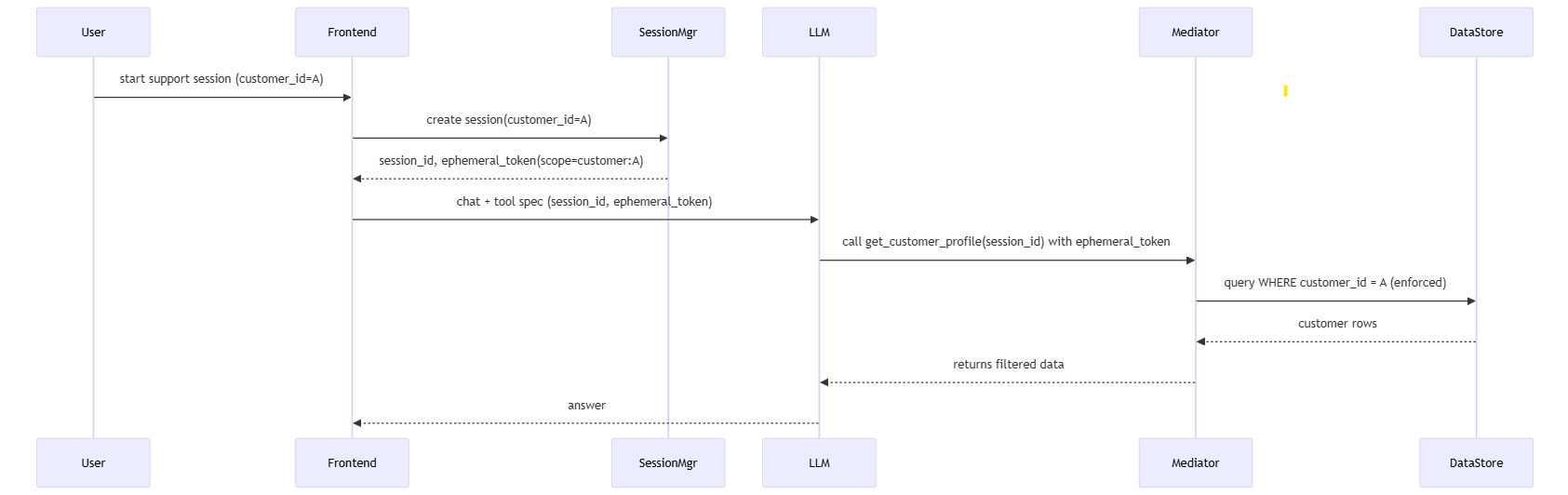

Sequence flow (simplified)

---

Key implementation patterns (concrete)

1) Ephemeral scoped tokens

• Issue JWTs scoped to a single customer_id, session_id, and short TTL (minutes).
• Token claims example:

  {
  "iss": "auth.mycompany.com",
  "sub": "mediator-service",
  "aud": "mcp-gateway",
  "iat": 1690000000,
  "exp": 1690000600,
  "customer_id": "cust_123",
  "session_id": "sess_abcd",
  "scopes": ["read:profile","read:tickets"]
  }


• Private signing key stored in a vault; public key used to verify in gateway.

2) Mediator / Policy Gateway responsibilities

• Validate token and claims.
• Map high-level tool calls to safe queries or action templates.
• Insert enforced filters (e.g., WHERE customer_id = :customer_id).
• Rate-limit and sanitize inputs (prevent * or arbitrary SQL passage).
• Log full request metadata (tool call, caller session, resolved SQL/operation hash, response size).
• Return only fields allowed by scope (mask PII if necessary).

3) Data-layer enforcement (RLS / Authorized Views)

• Postgres RLS example: ```sql ALTER TABLE tickets ENABLE ROW LEVEL SECURITY;

CREATE POLICY customer_isolation ON tickets USING (customer_id = current_setting(‘app.customer_id’)::text);

Before executing queries, the mediator sets the Postgres session var:
```sql
SET app.customer_id = 'cust_123';

• BigQuery authorized view pattern: expose a view that filters by customer_id and grant the mediator only view access.

4) Tool interface design (explicit actions)

• Expose whitelisted tool functions (no arbitrary SQL). Example endpoints:
  • GET /tools/get_customer_profile?customer_id=
  • POST /tools/search_tickets (templated search fields)
  • POST /tools/perform_billing_action (requires extra approval)
• Each endpoint verifies token customer_id == requested customer_id.

5) Ephemeral context & cache

• Keep chat history and retrieved docs tied to session_id.
• TTL and immediate invalidation after session end.
• If storing embeddings, prefix keys with cust_{id} and enforce access control on retrieval.

6) Auditing & DLP

• Log: tool call, token claims, resolved query, response summary, and LLM prompt.
• Send logs to SIEM and run automated DLP checks to detect data exfil patterns.

---

Example code snippets (pseudo)

Mediator: validate token and enforce customer

claims = verify_jwt(token)
if claims['customer_id'] != request.params.get('customer_id'):
    raise Unauthorized()
# Build safe query with param binding
rows = db.query("SELECT id,subject FROM tickets WHERE customer_id = %s AND status=%s",
                (claims['customer_id'], 'open'))

Postgres session var approach

conn.execute("SET app.customer_id = %s", (claims['customer_id'],))
conn.execute("SELECT * FROM tickets WHERE id = %s", (ticket_id,))

---

Additional controls (recommended for higher security)

• Break-glass & human approval for destructive operations.
• Data minimization: return only the minimal fields needed by the LLM.
• Differential access: separate read-only vs write-capable mediator tokens.
• Periodic secret rotation and short TTLs for tokens.
• Mutation hashing / idempotency: require operation confirmations from agents.

---

Quick integration checklist

• Issue ephemeral JWTs scoped to customer_id + session_id.
• Implement policy gateway that validates tokens and enforces customer_id filter.
• Add RLS or authorized views on all sensitive tables.
• Whitelist tool endpoints; disallow arbitrary query injection.
• Centralize audit logs and DLP scanning.
• Ensure ephemeral context (session cache) is namespaced and TTL’d.
• Add human approval for high-risk actions.

---

Tradeoffs & notes

• RLS gives strong protection but increases DB complexity.
• Mediator simplifies policy enforcement but is a single point to secure and scale.
• Ephemeral tokens reduce blast radius but require a reliable token service.

---
